APC 2200VA Backup battery and surge protection UPS

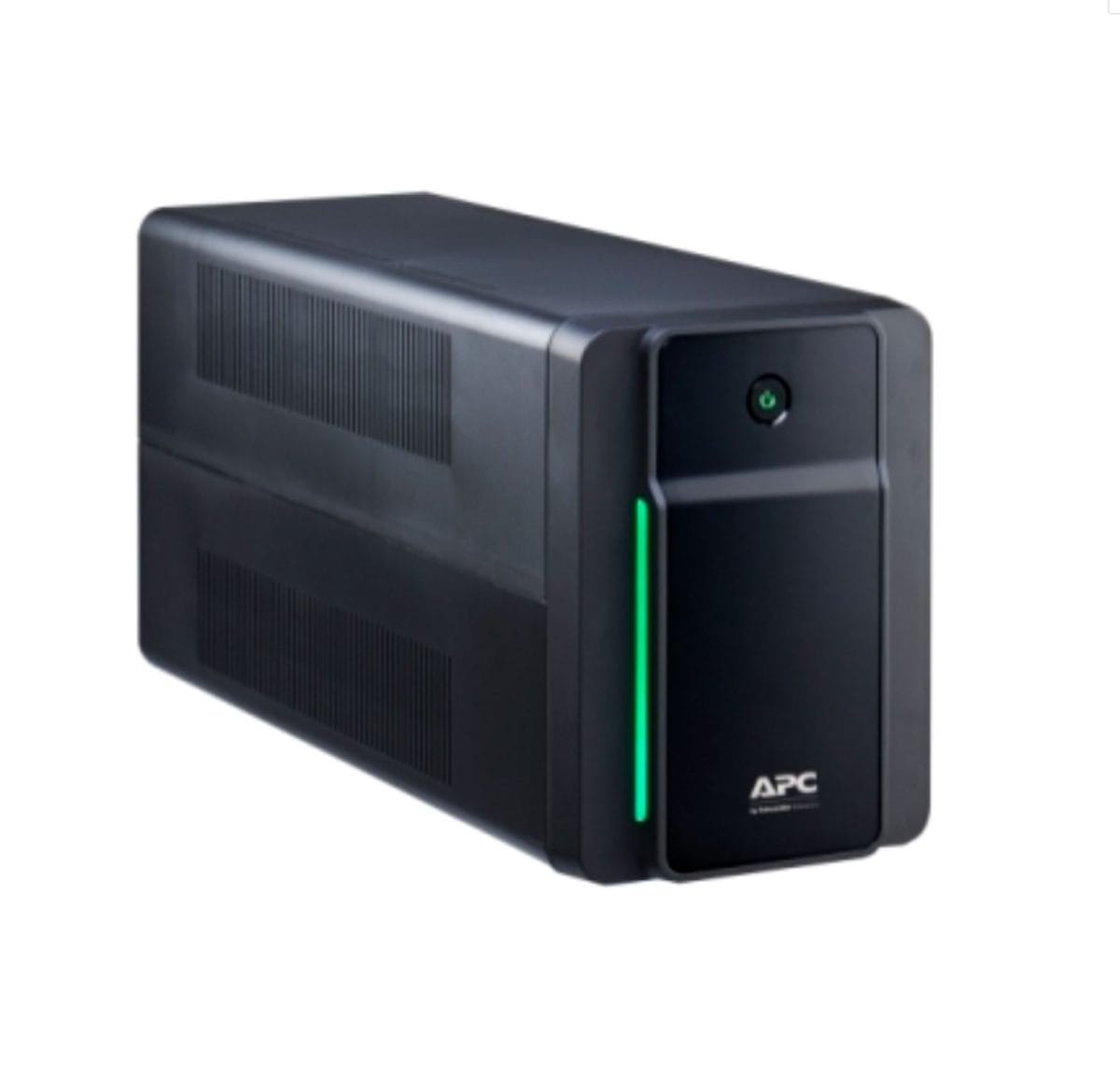

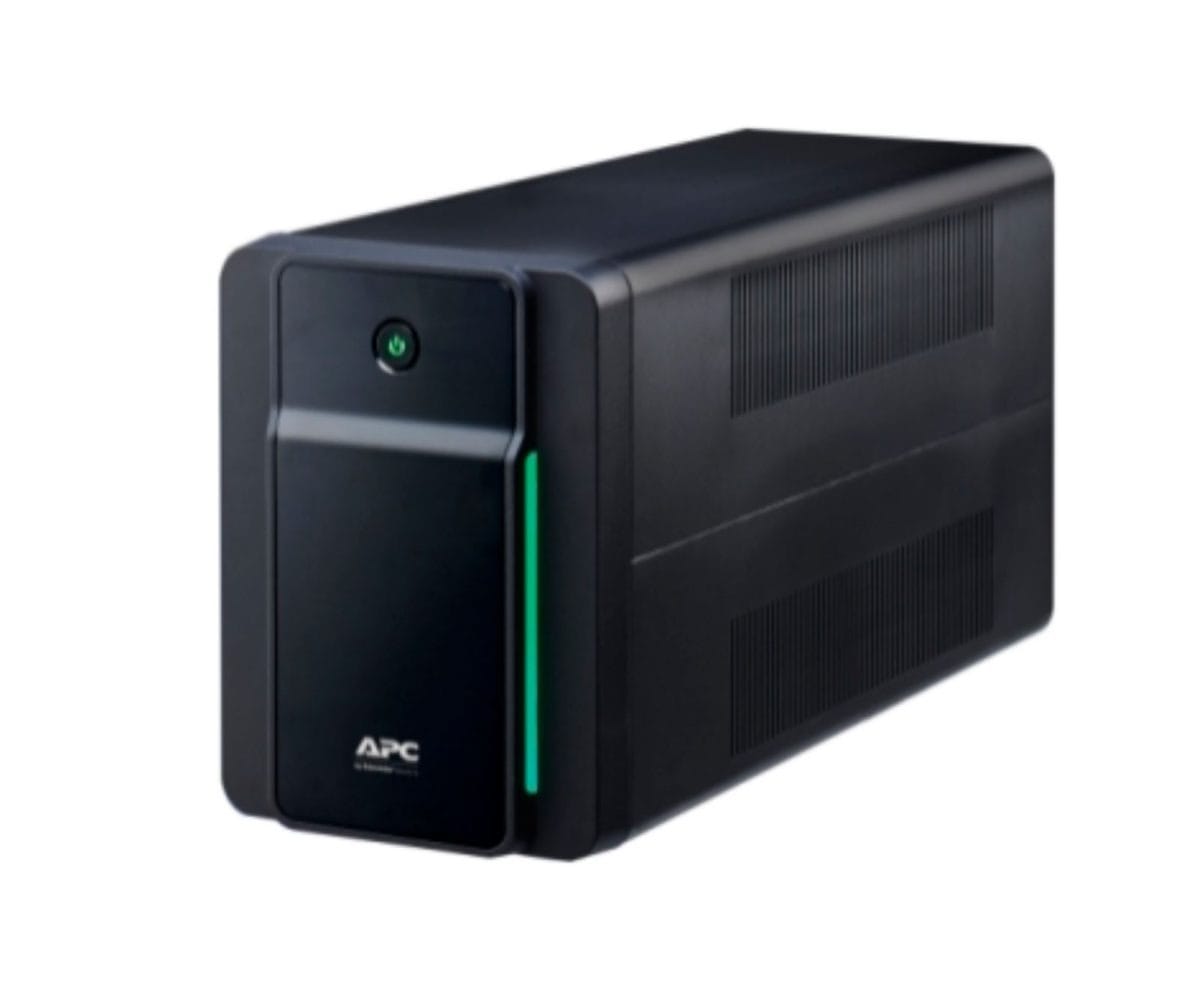

APC Back-UPS 2200VA 230V Tower (BX2200MI)
The APC Back-UPS 2200VA (BX2200MI) protects home/office electronics with line-interactive power conditioning and Automatic Voltage Regulation (AVR). It provides 6 × IEC C13 outlets (4 battery + surge, 2 surge-only), IEC C14 input, LED status, audible alarms, and USB (Type-B) for graceful PC shutdown.
Specifications
Feature | Details |
---|---|
Model | APC Back-UPS BX2200MI |
Topology | Line-interactive with AVR |
Capacity | 2200 VA / 1200 W |
Waveform (on battery) | Stepped approximation to sine wave |
Transfer Time | ~6 ms typical (≤10 ms max) |
Output | 6 × IEC 60320 C13 (4 backup+surge, 2 surge-only) |
Input | IEC 60320 C14, 230 V, 50/60 Hz auto-sensing |
Cord Length | 1.2 m |
Surge Energy | ≈273 J |
Noise Level | ≈40 dBA |
Dimensions (W × H × D) | 140 × 190 × 390 mm |
Net Weight | ≈12.3 kg |
Typical Backup (ref.) | ~7.5 min @ 50% load, ~4 min @ 70%, ~1.25 min @ 100% |
Battery | Sealed lead-acid, hot-swappable |
Warranty | 1-year Official Distributor Warranty |
Order now from Zaytoona.com — delivery to Baghdad, Basrah, Erbil، وكل المحافظات.
