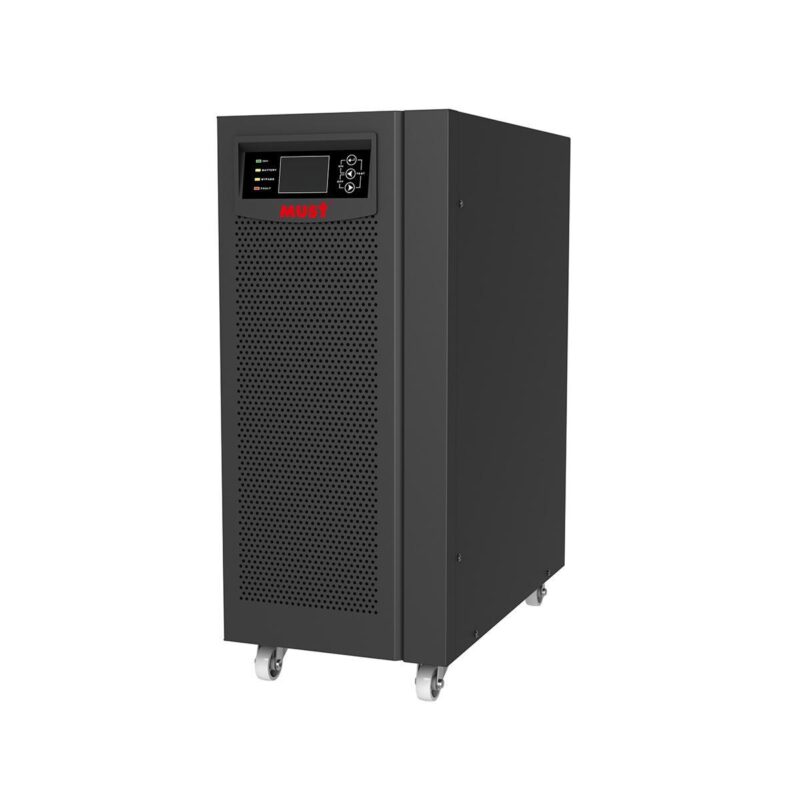

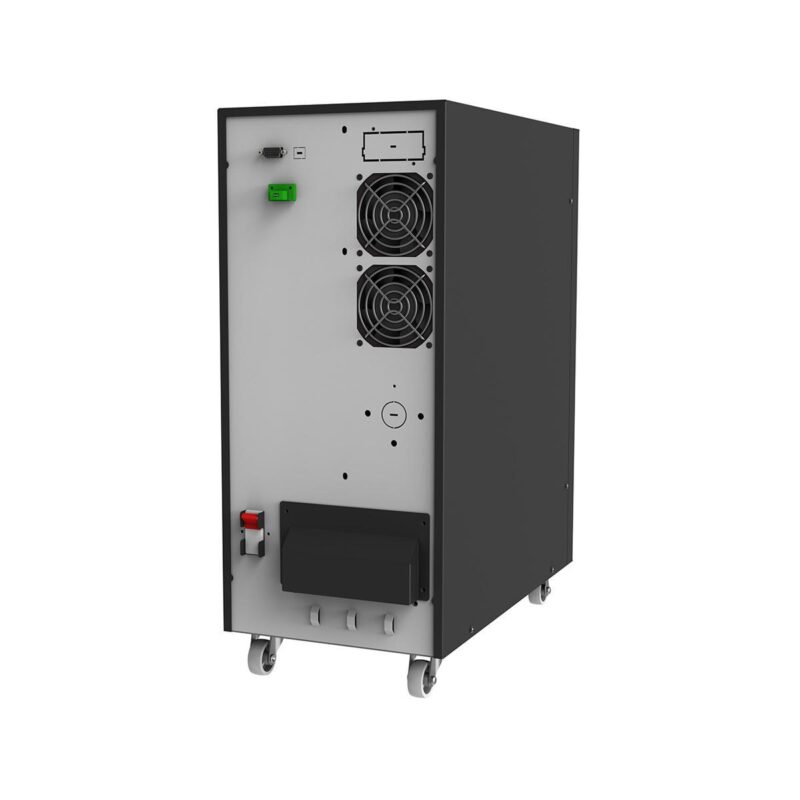

Must Online UPS 6KVA 6KW EH5500-H6K

MUST High Frequency Single Phase Online UPS EH5500-H6K

Performance:

• With double conversion online design, zero output transfer time.

• Adopt DSP digital control, excellent performance indicators, more steady and reliable.

• Adopt active power factor correction technology (PFC), the input power factor is 1, can reduced the pollution to the grid, to energy saving and reducing system investment cost.

• Ultra-wide input voltage range , input voltages available 110V instead of turn to battery power.

• With LCD+LED real-time display, UPS operating available for Detection

• With self- detection function, can detect hidden faults of UPS

• Cold start by battery without grid Input.

• Input frequency range 40~70Hz, support various fuel generators

• With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protectionand battery overcharge protection.

• Output power factor 1.0 for your option. max efficiency reach 95%, reduce loss of UPS.

• With input neutral and live line detection function, avoid the reverse connection of UPS utility input

• When utility cut-off, the UPS discharge battery in the battery mode; when the city power is recovery ,UPS turn on automatically,and charge battery at the same time, asunattended function.

• Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations, available SNMP card (optional) to UPS remote monitoring function.

• With 3-5 minutes can work when on full loads.

Specification
